Siemens

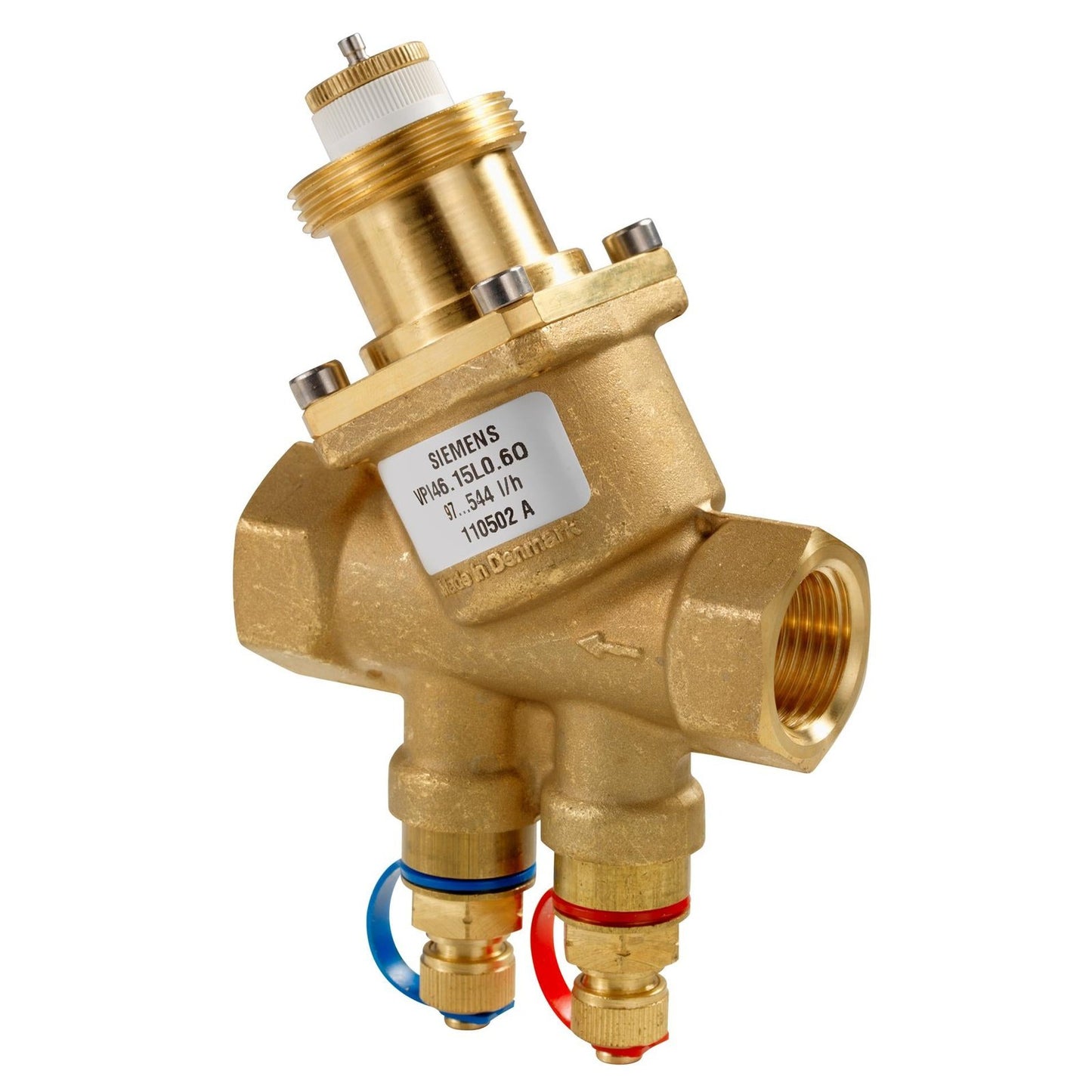

VPI46.15L0.6Q Combi valves, internally threaded, PN25, DN15, 100…575 l/h, pressure test points
VPI46.15L0.6Q Combi valves, internally threaded, PN25, DN15, 100…575 l/h, pressure test points
SKU:VPI46.15L0.6Q
Low stock: 5 left
Regular price
RM474.00
Regular price
Sale price
RM474.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Pre-adjustable Combi valves, PN 25, internally threaded for
- ventilation and air conditioning plants for control on the water side and automatic hydraulic balancing of terminal units, such as fan coils, induction units, and in heat exchangers for heating or cooling.
- heating zones like self-contained heating systems, apartments, individual rooms, etc.
- closed circuits
Volumetric flow 100…575 l/h. With differential pressure test points.
Technical Specifications:
| Stroke |
2.5 mm, To DN 15: 2.5 mm;DN 20: 5 mm;DN 25-32: 5.5 mm;DN 40-50: 15 mm
|
|
Leakage rate
|
Class IV (0…0.01% of volumetric flow V100)
|
|
PN class
|
PN 25
|
|
Volumetric flow V
|
575 l/h
|
|
Volumetric flow Vmin
|
100 l/h
|
|
DN
|
15
|
|
Medium
|
Water , Water with anti-freeze
|
|
Medium temperature
|
1…120 °C
|
| Ambient temperature, operation | 1…50 °C |
|
Valve characteristic
|
Linear
|
|
Permissible operating pressure
|
2500 kPa
|
|
Material, valve body
|
Brass CW602N (DZR)
|
|
Material, inside set
|
Dezincification resistant brass (DR), CW602N, stainless steel, PPS
|
| Connecting thread | Rp ½" |
|
Mounting position
|
Upright to 90° inclined
|
| Δpmin | 19 kPa |
| Δpmax | 600 kPa |
| SSA..P Δpmax | 600 kPa |
| SSA..P Δps | 19 kPa |
|
STA..3..Δpmax
|
600 kPa
|
|
STA..3..Δpmin
|
19 kPa |
