Siemens

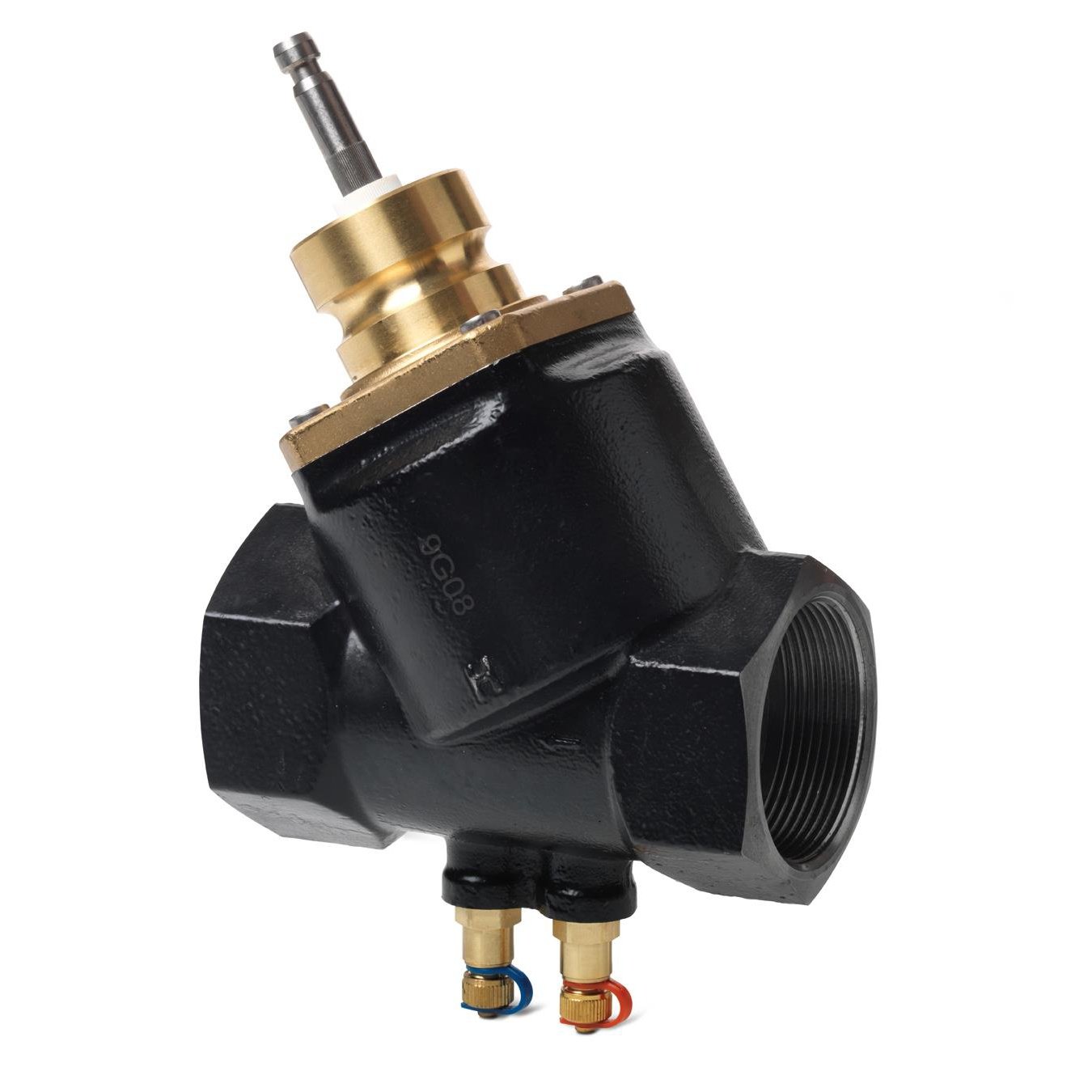

VPI46.40F9.5Q Combi valves, PN25, DN40, 1370…9500 l/h, pressure test points
VPI46.40F9.5Q Combi valves, PN25, DN40, 1370…9500 l/h, pressure test points
SKU:VPI46.40F9.5Q
Low stock: 5 left
Regular price
RM2,988.00
Regular price
Sale price
RM2,988.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Pre-adjustable Combi valves, PN 25, internally threaded for
- ventilation and air conditioning plants for control on the water side and automatic hydraulic balancing of terminal units, such as fan coils, induction units, and in heat exchangers for heating or cooling.
- heating zones like self-contained heating systems, apartments, individual rooms, etc.
- closed circuits
Volumetric flow 1370…9500 l/h. With differential pressure test points.
Technical Specifications:
| Stroke |
15 mm, To DN 15: 2.5 mm;DN 20: 5 mm;DN 25-32: 5.5 mm;DN 40-50: 15 mm
|
|
Leakage rate
|
Class IV (0…0.01% of volumetric flow V100)
|
|
PN class
|
PN 25
|
|
Volumetric flow V
|
9500 l/h
|
|
Volumetric flow Vmin
|
1370 l/h
|
|
DN
|
40
|
|
Medium
|
Water , Water with anti-freeze
|
|
Medium temperature
|
1…120 °C
|
| Ambient temperature, operation | 1…50 °C |
|
Valve characteristic
|
Linear
|
|
Permissible operating pressure
|
2500 kPa
|
|
Material, valve body
|
Cast iron
|
|
Material, inside set
|
Dezincification resistant brass (DR), CW602N, stainless steel, PPS
|
| Connecting thread | Rp 1½" |
|
Mounting position
|
Upright to 90° inclined
|
| Δpmax | 600 kPa |
| Δpmin | 25 kPa |
| SAY..P Δpmax | 600 kPa |
| SAY..P Δpsmin | 25 kPa |
