Siemens

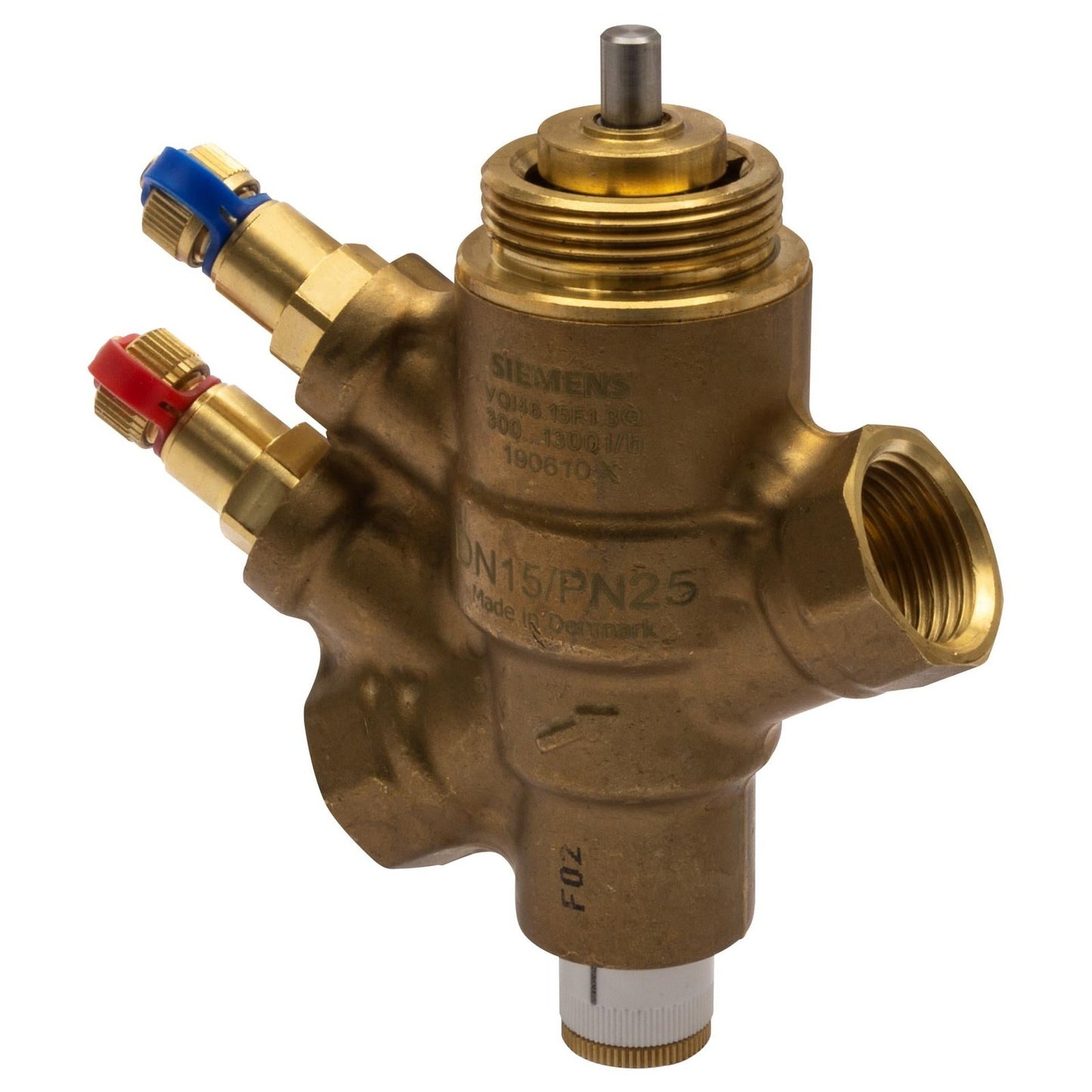

PICV, internally threaded, PN 25, DN 20, 320....1500 l/h, pressure test points
PICV, internally threaded, PN 25, DN 20, 320....1500 l/h, pressure test points
SKU:VQI46.20F1.5Q
Low stock: 5 left
Regular price
RM512.00
Regular price
Sale price
RM512.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Presettable PICVs, PN 25, internally threaded for
- ventilation and air conditioning systems for water side control and automatic hydraulic balancing of air after-treatment devices, such as fan convectors, induction units, and in heat exchangers for heating or cooling.
- heating systems for heating zones such as floor heating systems, apartments, individual rooms, etc.
- closed circuits
Volumetric flow 320…1500 l/h. With pressure measuring points P/T.
Technical Specifications:
| Stroke |
4 mm
|
|
Leakage rate
|
Class IV, 0…0.01 % of kvs
|
|
PN class
|
PN 25
|
|
Volumetric flow V
|
1500 l/h
|
|
Volumetric flow Vmin
|
320 l/h
|
|
DN
|
20
|
|
Medium
|
Low-temperature hot water , Chilled water , Water with anti-freeze
|
|
Medium temperature
|
1…90 °C
|
|
Ambient temperature, operation
|
1…50 °C
|
|
Valve characteristic
|
On/Off
|
|
Permissible operating pressure
|
2500 kPa
|
|
Material, valve body
|
Brass CW602N (DZR)
|
|
Material, inside set
|
Dezincification resistant hot-pressed brass (DZR), CW602N, stainless steel, PPS
|
|
Connecting thread
|
Rp ¾"
|
|
Mounting position
|
SUE21P: Horizontally up to 90° and not hanging STA..3..: Any position
|
|
STA..3..Δpmax
|
600 kPa
|
|
STA..3..Δpmin
|
35 kPa
|
|
SUE..P Δpmax
|
600 kPa
|
|
SUE..P ΔPmin
|
35 kPa
|
