Belimo

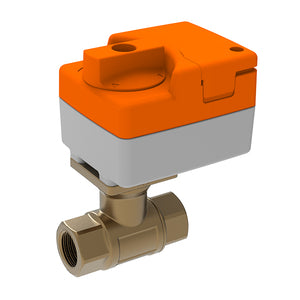

Zone valve (CV), 1", 2-way, Internal thread, kvs 8.0 m³/h Rotary actuator, 2 Nm, AC 230 V, Open/close, 3-point, 105 s, IP40 Actuator fitted
Zone valve (CV), 1", 2-way, Internal thread, kvs 8.0 m³/h Rotary actuator, 2 Nm, AC 230 V, Open/close, 3-point, 105 s, IP40 Actuator fitted
SKU:RB225+FRU230-3
13 in stock
Regular price
RM880.00
Regular price
Sale price
RM880.00
Unit price
/
per
Shipping calculated at checkout.
Control Type: On/Off
Couldn't load pickup availability
- Zone valve (CV), 1", 2-way
- Internal thread, kvs 8.0 m³/h
- Rotary actuator, 2 Nm, AC 230 V
- Open/close, 3-point
- 105 s, IP40 Actuator fitted
Valve specifications
| Close-off pressure | 600 kPa |
| Fluid | Cold and hot water |
| Kvs |
8.0 m³/h |
| Pattern |
2-way |
| Pipe connection | Internal thread |
| Pressure-independent | No |
Actuator specifications
| Control type | Open/Close, 3-point |
| Angle of rotation | 90 |
| Electrical connection | Cable |
| Fail-safe function | Non fail-safe |
| Manual override | With hand crank |
| Power consumption (running) | 1 W |
| Running time (motor) | 105 s / 90° |
| Torque | 2 Nm |
| Voltage AC/DC | AC 230 V |
